30% BETTER THAN COUNTERSUNK HOLES

Highly reliable and accurate
No bumps or holes on surface
Can be easily removed when worn out
Cheaper than countersunk holes
Hard to break off

Rio-Carb

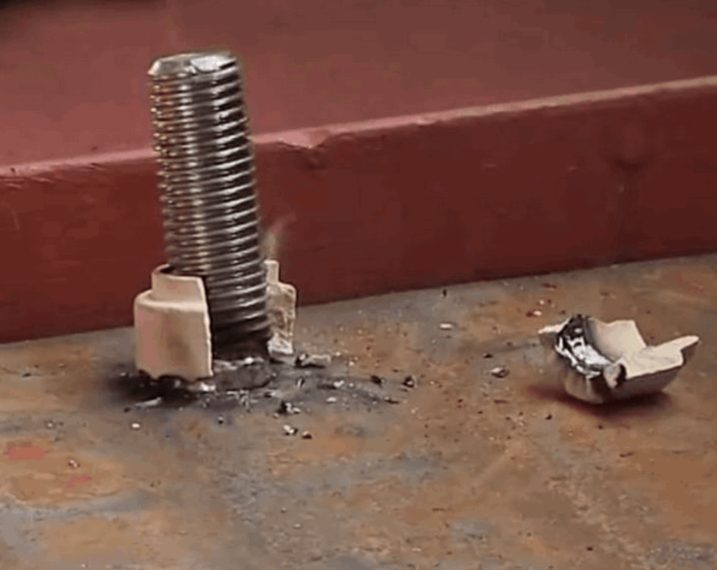

Flash welding at 1200 amps
for ½ a second

Rio-Carb

Finished stud with
a nut and washer

Rio-Carb

Test demonstrating the
strength of stud (M16)

Rio-Carb

This will ensure that
the liners fit,
the studs don't break,
and that the material flows.

Pros vs Cons

Excellent strength.
Smoother surface finish than inserts and Nib-Head Countersunk bolts.
Easier to install. Supplied complete with galvanised nuts and washers.
Easier to remove as rusted threads do not have to be flame-cut off.
Studs can be placed with an accuracy of 2mm.
Rust protected threads make assembly easy.
Cheaper than holes, and no need to purchase Nib-Head bolts, washers and nuts.

Studs can be damaged in transit.
However, Rio-Carb will palletize liner plates such that they are not easily damaged during transporting.
